882 TAB FLAT TOP

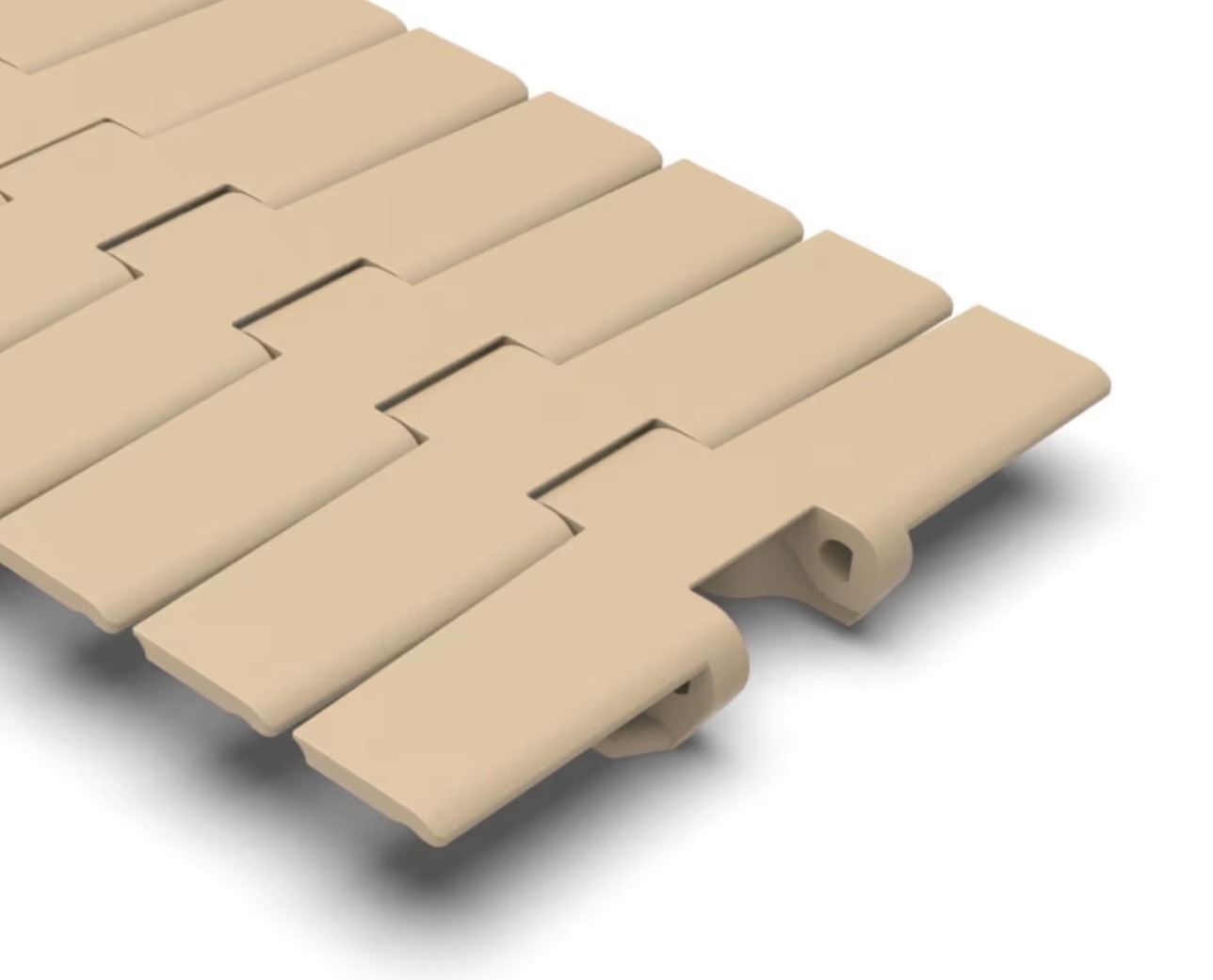

FLAT-TOP CHAIN Lf 882 TAB K1200

Falt-Top Chain Lf 882 Tab K1200

Article-Nr : P11140109

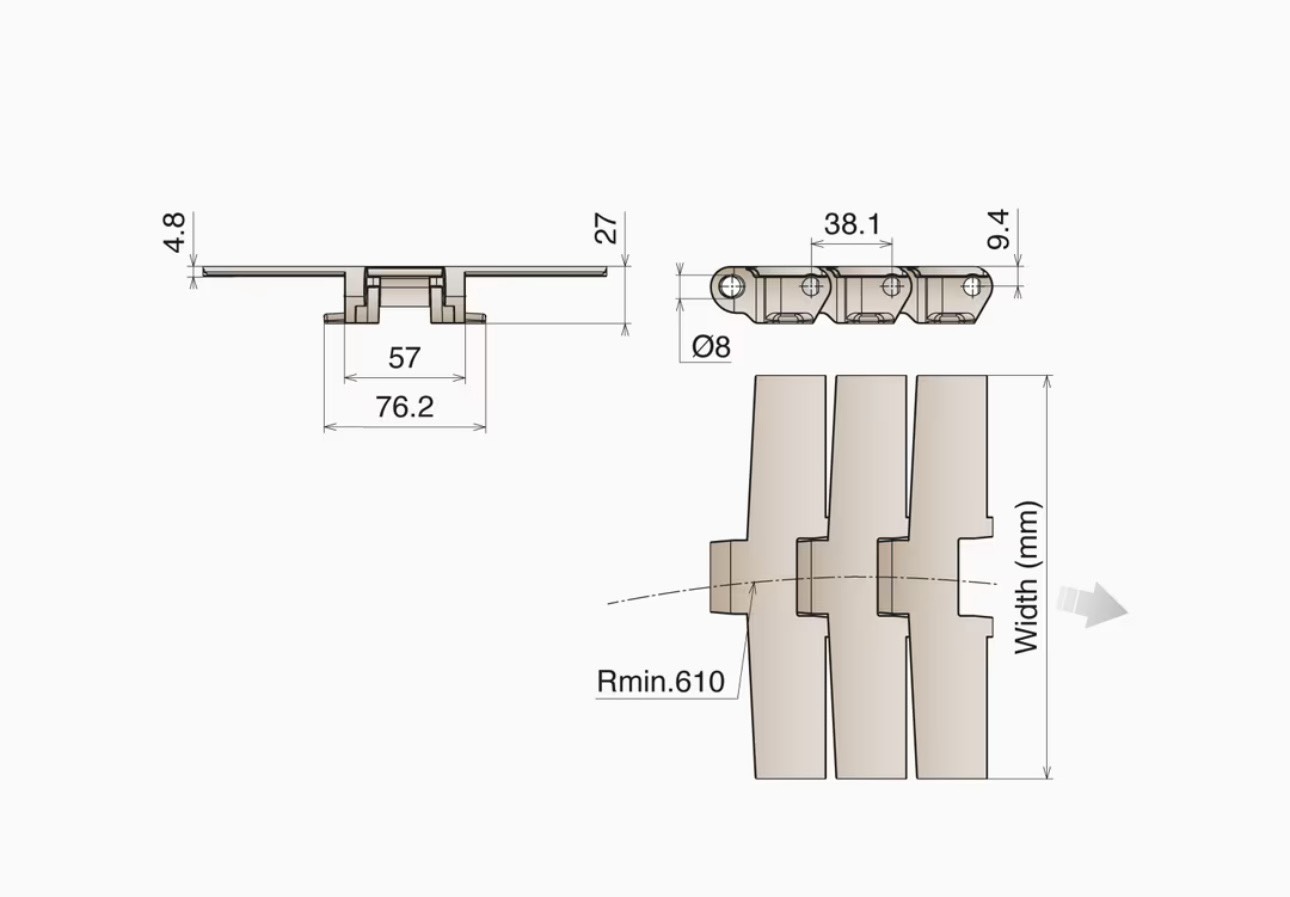

Technical features

Series : 821-882-8257

Pitch : 38.1 mm.

Thickness : 4.8 mm.

Surface Type : FT-Flat Top

Functionality : Side Flex TAB

Unit of measure : Meter

Width : K1200-3,048 mm.

Material : LF-Low friction acetal (01)

Part : P1114

Back flex radius : 40 mm.

Sideflexing radius min : 610 mm.

Mass : 3.4 kg/m

Pin material : Stainless steel

Box : 10 ft-3,048 m.

Max working load : 3830 N
