CC 1400

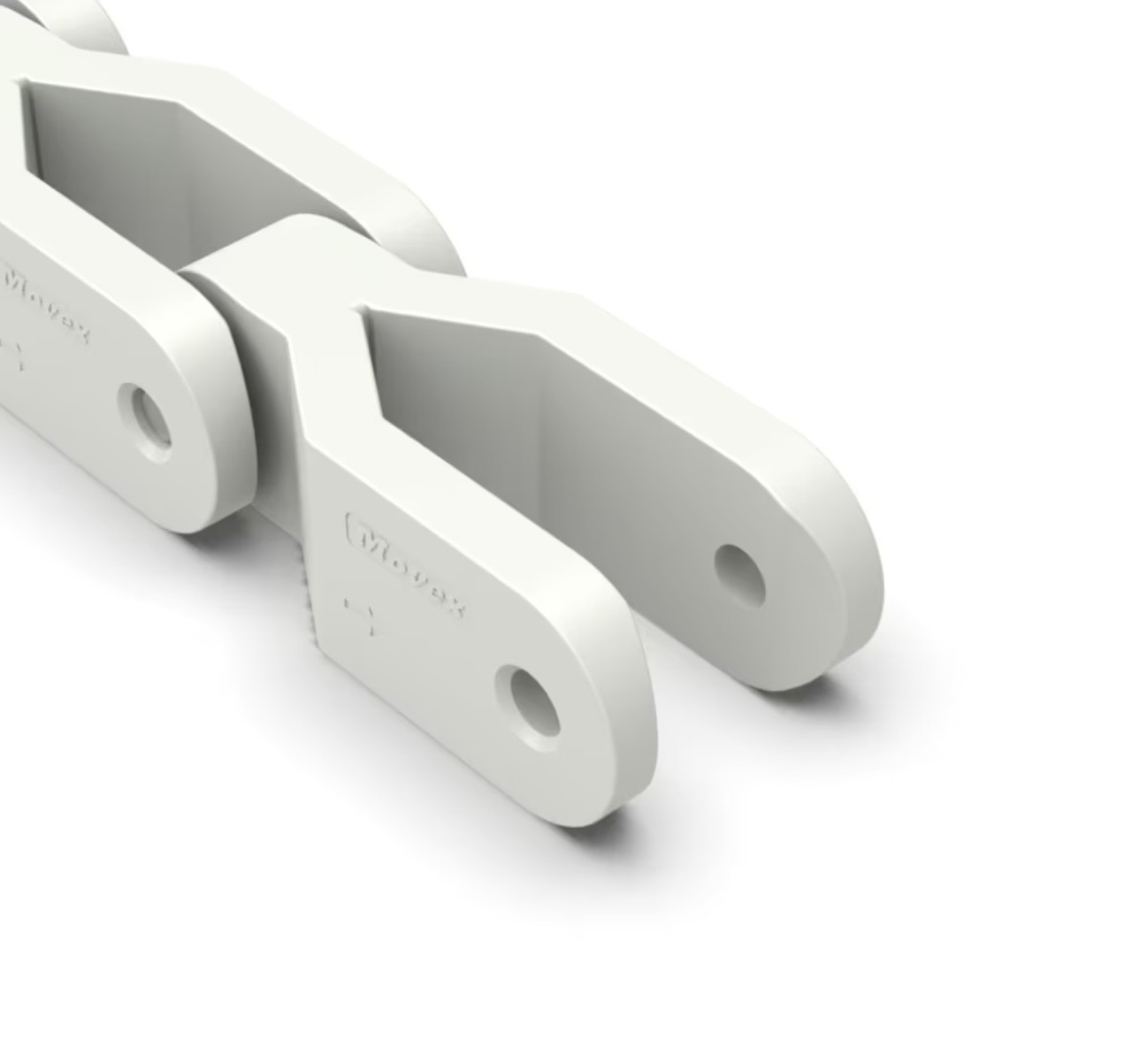

Movex Cardanic Chain Series CC 1400 W

Cardanic Chain Series Cc 1400 White

Article-Nr : P11300400



Technical features

Series : Crate conveyor 600-1400-1701-1706

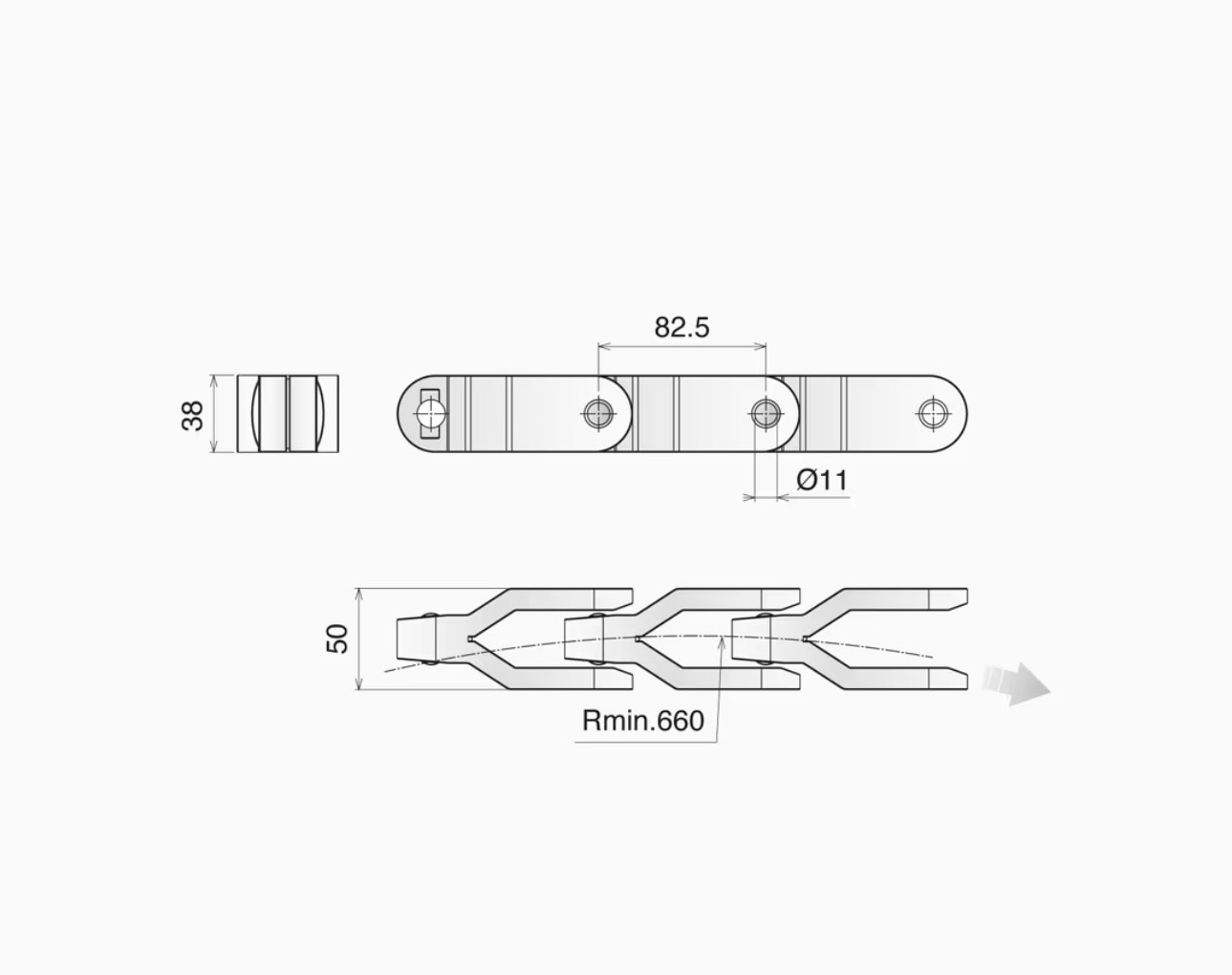

Pitch : 82.5 mm

Thickness : 38 mm

Sueface Type : FT-Flat top

Funtionality : Side Flex

Unit of measure : Meter

Width : K197-50,0 mm

Material : LFN - Low Friction Acetal (04)

Part : P1130

Back flex radius : 50 mm

Sideflexing radius min : 660 mm

Mass : 3.24 kg/m

Pin Material : Stainless Steel

Box : 10 ft - 3,052 m

Max working load : 6500 N
