Chain & Plastic Chain
CC 1400 TAB

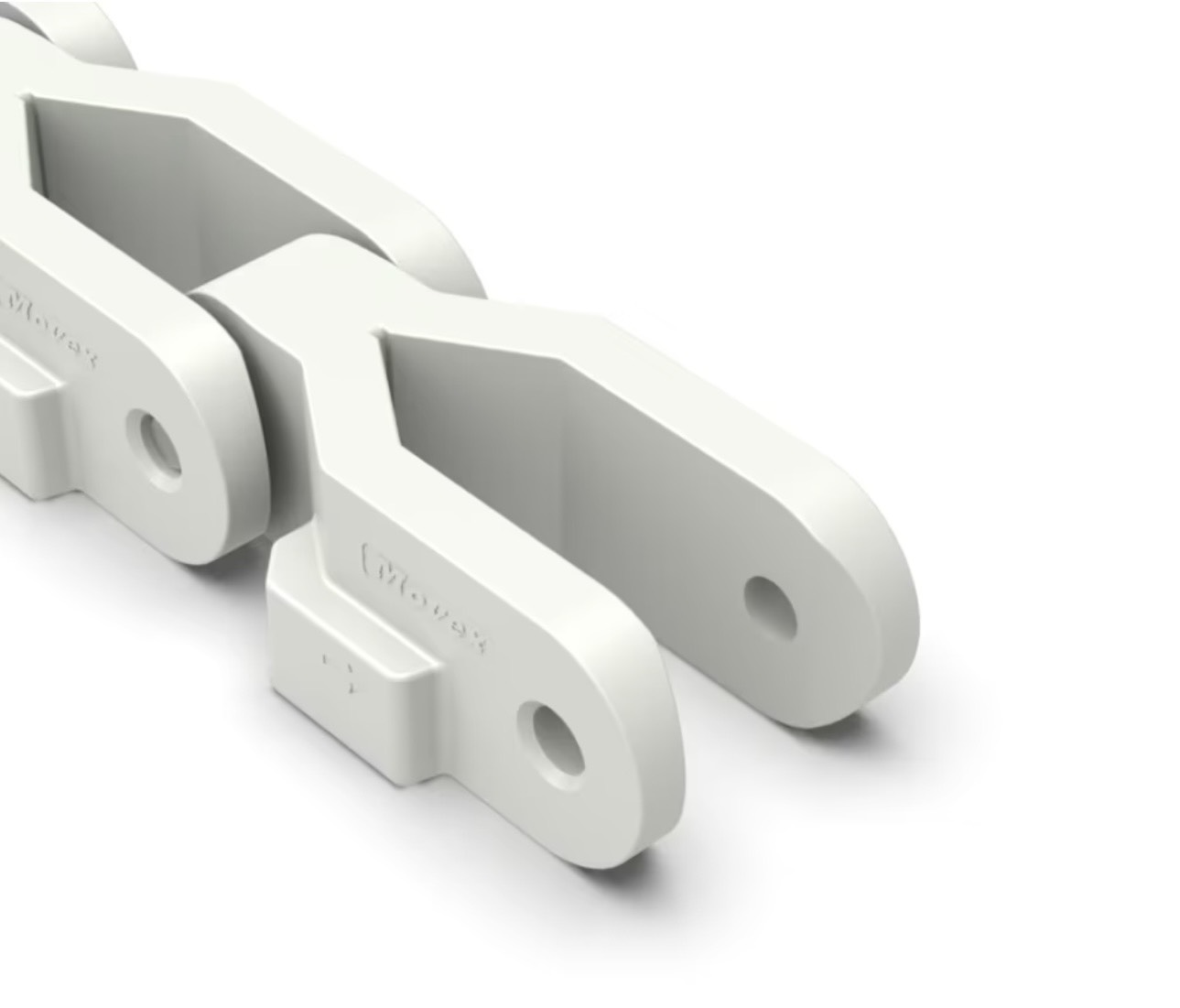

Movex Cardanic Chain Series CC 1400 TAB W

Cardanic Chain Series Cc1400 Tab White

Article-Nr : P11310400



Technical Features

Serise : Crate conveyor 600-1400-1701-1706

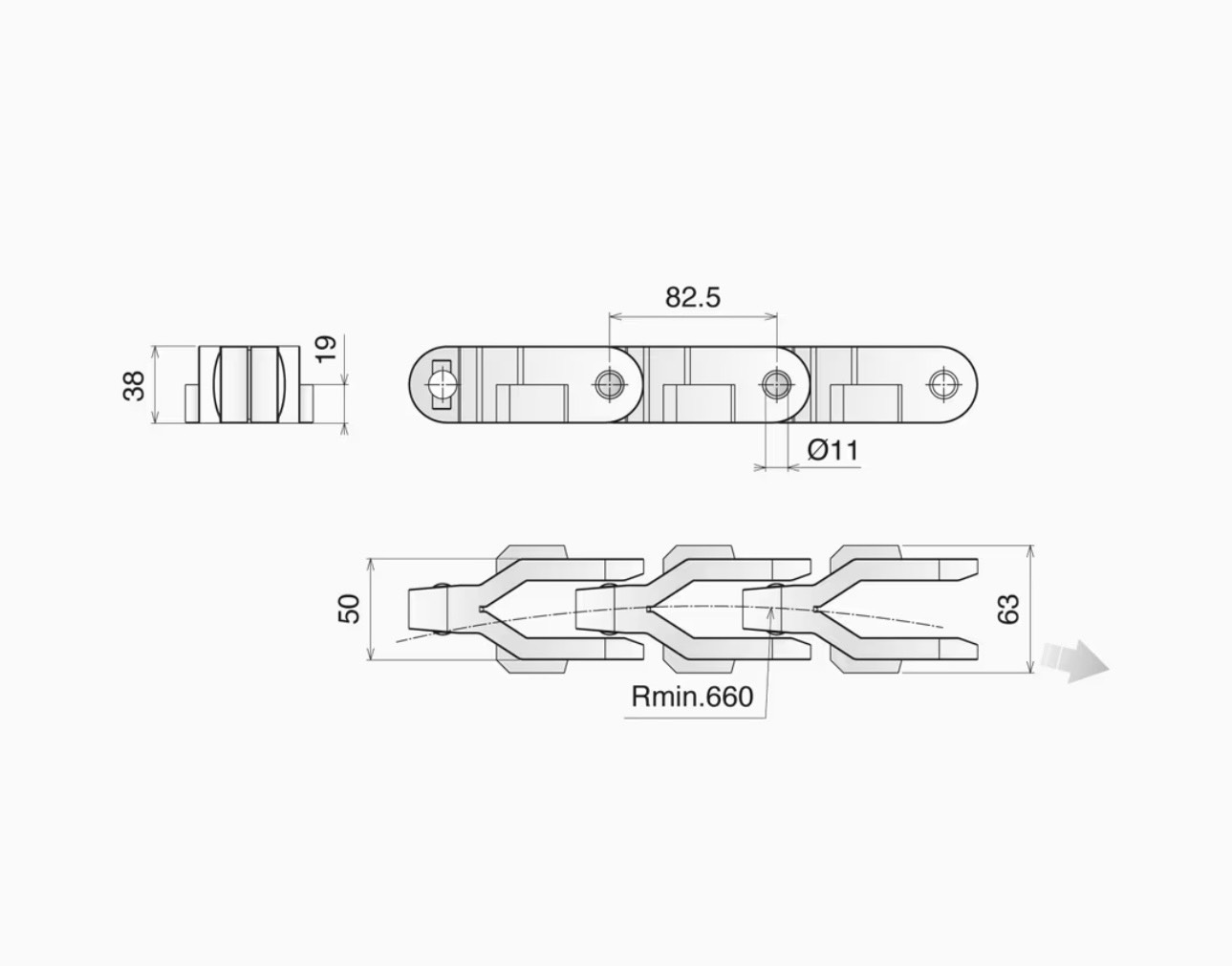

Pitch : 82.5 mm

Thickness : 38 mm

Surface Type : FT-Flat Top

Functionality : Side Flex TAB

Unit of measure : Meter

Width : K197-50,0 mm

Material : LFN-Low Friction Acetal (04)

Part : P1131

Back Flex radius : 50 mm

Sideflexing radius min : 660 mm

Mass : 3.24 kg/m

Pin material : Stainless Steel

Box : 10 ft - 3,052 m

Max working load : 6500 N
